Overview

You can get started testing the Headless Onramp API using sandbox mode. When you’re ready to test with real funds contact us to get production access.

The v2 Onramp Order API enables you to build a native feeling onramp experience with Apple Pay or Google Pay where the user never leaves your app. It’s the fastest onramp experience available anywhere. Integrating takes only three steps:

Integration steps

1. Call the API

   Call the Create Onramp Order API to get a quote and a payment link. You can fetch the list of available currencies from the Buy Options API.

2. Render the pay button

   Render the Apple Pay or Google Pay button via the payment link URL in a webview or iframe in your app.

3. Listen to events and update transaction status

   Subscribe to post message events from the webview/iframe to listen for success/error messages. Use these events to notify the user when their transaction succeeds, or what type of error they encountered and how they might fix it.

Requirements

User verification

In order to provide an API driven native onramp experience, we rely on you, the app developer, to collect and verify the user’s email address and phone number in your request to the Create Onramp Order API. You must verify the user’s ownership of the email address and phone number, this can be done by sending an OTP using a vendor like Twilio or AWS SES. Additionally, the phone number must be re-verified at least every 60 days.

US only

The Headless Onramp API is currently available for US users with valid US phone numbers. The phone number must be a real cell phone number, not a VoIP phone number.

Supported platforms

The onramp payment link can be rendered in:

• iOS apps: Via a webview in an iOS app (Apple Pay)
• Android apps: Via a WebView in an Android app (Google Pay — see Android app requirements below)
• Web apps: Via iframe on your website (Apple Pay — requires additional setup, see Web app requirements below)

User gesture required

Both Apple Pay and Google Pay require that a payment session be created by a user gesture. This means that the user has to physically press the pay button we render within the webview/iframe. It cannot be programmatically triggered.

Legal agreements

Your users must accept Coinbase’s Guest Checkout Terms of Service, User Agreement and Privacy Policy prior to using Coinbase Onramp. It is your responsibility to clearly inform users that by proceeding with this payment they are agreeing to these policies.

Android App Requirements

To use Google Pay with the Headless Onramp in your Android app, you must:

1. Get approved for Google Pay — Your app must be approved by Google before Google Pay will work in production. Follow the Google Pay publish your integration guide to create a business profile, accept the Terms of Service, and submit your app for approval.

2. Configure your Android WebView for Google Pay — The Payment Request API must be enabled in your WebView to launch the Google Pay payment sheet. Follow Google’s official Using Android WebView guide to add the required dependencies, intent filters, and WebView settings.

3. Call the Create Onramp Order API — Once your app is approved and the WebView is configured, call the Create Onramp Order API to get a payment link, load it in your configured WebView, and listen for post message events to track payment status.

Your app must be approved by Google before Google Pay will work in production. In test environments, you can use the Google Pay test suite without approval.

Web App Requirements

Interested in integrating Apple Pay for your web app? Web app integrations require additional setup steps. Contact our team to get started.

Rendering the Apple Pay Onramp payment link on your web app in an iframe requires some additional security measures to ensure the safety of your users.

• Your web app’s domain must be registered on the domain allow list in CDP portal
• You must pass the domain name to the create onramp order API when creating a payment link
• You must verify the ownership of your domain by hosting a domain verification file (provided by us)
• Your domain must not be registered with any other Apple Merchant ID in the Apple Developer Portal
• You must include the sandbox="allow-scripts allow-same-origin" and referrerpolicy="no-referrer" attributes on your iframe

To get started with your web app integration, schedule a call with our team who will walk you through the process of verifying your domain.

You will also need to consider the different levels of Apple Pay support provided by various browsers. Safari offers native Apple Pay support, but other browsers offer a QR code experience where the user can scan the code and complete payment on their phone.

Post message events

Payment links returned by the Create Order API are designed to be loaded within a webview so that your app can subscribe to post message events emitted by our web component. Events contain an error code and an error message. The message will be localized for the user so it can be displayed directly in your app UI. See the documentation of your webview library for details on how to consume post message events.

Post message event structure

{
  eventName: "<EVENT_NAME>",
  data: {
    errorCode: "<ERROR_CODE>",
    errorMessage: "<ERROR_MESSAGE>",
}

Events names

The following events are published by the payment link for both Apple Pay and Google Pay.

onramp_api.load_pending

Emitted when Javascript is initialized and we have started fetching data required to render.

onramp_api.load_success

Emitted when the pay button is successfully rendered and ready for user interaction.

onramp_api.load_error

Emitted when an error occurred attempting to initialize the pay button. See the error message for more details. Some possible error codes are listed below.

Error Code	Description
ERROR_CODE_INIT	The payment link is no longer valid, call the Create Onramp Order endpoint to create a new one.
ERROR_CODE_GUEST_APPLE_PAY_NOT_SUPPORTED	The user’s browser or device does not support Apple Pay. This error can be safely ignored on web apps as the browser will fall back to rendering an Apple Pay QR code.
ERROR_CODE_GUEST_APPLE_PAY_NOT_SETUP	The user has not set up Apple Pay on their device. Prompt the user to setup Apple Pay then try again.
ERROR_CODE_GUEST_GOOGLE_PAY_NOT_SUPPORTED	The user’s device does not support Google Pay. This can occur if the device does not meet Google’s minimum requirements.

onramp_api.commit_success

Emitted after the user presses the pay button if the transaction was successfully started.

onramp_api.commit_error

Emitted after the user presses the pay button if the transaction could not be started. See the error message for more details regarding the payment failure reasons. Some possible error codes are listed below.

Error Code	Description
ERROR_CODE_GUEST_CARD_SOFT_DECLINED	The user was declined by the bank. Please contact your bank or try again with a different debit card. Users attempting to use Apple Cash will also get this error, but we cannot distinguish it from other bank decline cases.
ERROR_CODE_GUEST_INVALID_CARD	Invalid card or billing address.
ERROR_CODE_GUEST_CARD_INSUFFICIENT_BALANCE	The debit card has an insufficient balance to process the transaction.
ERROR_CODE_GUEST_CARD_HARD_DECLINED	The transaction was declined by the issuing bank of the card.
ERROR_CODE_GUEST_CARD_RISK_DECLINED	The transaction was flagged by our risk rules and is unable to proceed.
ERROR_CODE_GUEST_REGION_MISMATCH	The region the user is located in is not supported.
ERROR_CODE_GUEST_PERMISSION_DENIED	The user has been blocked from using onramp.
ERROR_CODE_GUEST_CARD_PREPAID_DECLINED	The user tried to pay with a prepaid debit card, which is unsupported.
ERROR_CODE_GUEST_TRANSACTION_LIMIT	This transaction would exceed the user’s weekly transaction limit.
ERROR_CODE_GUEST_TRANSACTION_COUNT	This transaction would exceed the user’s lifetime transaction count limit (currently 15).
ERROR_CODE_INVALID_BILLING_ZIP	The billing address ZIP code provided by the payment method could not be validated.
ERROR_CODE_INVALID_BILLING_ADDRESS	The billing address provided by the payment method is incomplete.
ERROR_CODE_INVALID_BILLING_NAME	The cardholder name is invalid or may contain unsupported characters.

onramp_api.cancel

Emitted if the user cancels the payment popup.

onramp_api.polling_start

If you keep the webview active in your app after receiving the onramp_api.commit_success message, the webview will poll our transaction status API automatically and report success or failure via the following two events.

onramp_api.polling_success

Emitted if the transaction completed successfully and funds have been sent to the destination wallet address.

onramp_api.polling_error

Emitted if there was an error processing the transaction. Some possible error codes are listed below.

Error Code	Description
ERROR_CODE_GUEST_TRANSACTION_BUY_FAILED	We were unable to complete the crypto purchase, likely due to a failed risk check. The user’s card will not be charged.
ERROR_CODE_GUEST_TRANSACTION_SEND_FAILED	We were unable to send the funds to the user’s destination address, the user’s card will be refunded.
ERROR_CODE_GUEST_TRANSACTION_TRANSACTION_FAILED	An internal error has occurred in Coinbase services, the Onramp team will be automatically notified to investigate.
ERROR_CODE_GUEST_TRANSACTION_AVS_VALIDATION_FAILED	We were unable to process the transaction due to failure to validate the user’s billing address. Ask the user to verify their billing address with the bank card. The user’s card will not be charged.

Order lifecycle

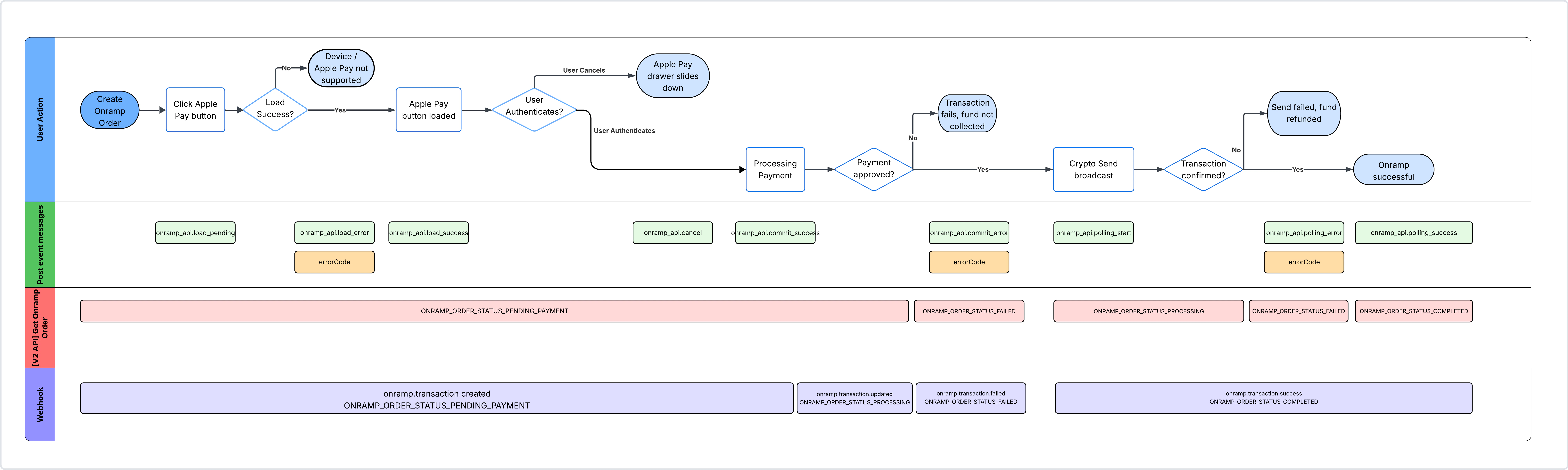

The following diagram shows the complete order lifecycle from order creation through settlement, including the corresponding post message events and API order statuses at each stage.

Integration guide

Tracking transactions

When tracking transactions in your database, create and record transaction when you receive the onramp.transaction.updated event (ONRAMP_ORDER_STATUS_PROCESSING) after user has authenticated and committed payment. This ensures your records reflect only committed transactions, and not potentially abandoned workflow.

Handling user cancellation

Webhook event does not emit a terminal failure status when a user abandons the payment flow on the front-end without completing it. Order will remain in Processing on your backend indefinitely.

If your integration records orders before the PROCESSING status, implement your own timeout mechanism to handle this case.

If user completes the created payment after your timeout has expired, the transaction will still be processed and captured. You can reconcile any completed transactions by calling the Get all onramp transactions API.

Testing

You can test your integration with the Headless Onramp API by creating sandbox orders. To create a sandbox order, just prefix the partnerUserRef parameter in your call to the Create Onramp Order API with the string sandbox-. Doing so will result in your transaction always succeeding, but your debit card will never be charged.

For the phoneNumber parameter, you can use any random phone number, as long as it’s in a valid US phone number format (example: +1 international code + US area code + 7 digit number; [phone])

Web app testing

When testing your web app integration, you can append the query parameter &useApplePaySandbox=true onto the end of the payment link to use a fake Apple Pay popup, making it easier to test your integration on localhost.

Android app testing

You can test Google Pay in your Android app without production approval by using the sandbox order flow described above. The Google Pay test suite allows you to validate your WebView integration before submitting your app for approval. See the Google Pay test and deploy guide for details.

Troubleshooting

• When integrating via iframe, make sure to include the allow=payment attribute on the iframe element.
• For Android WebView integrations, ensure that javaScriptEnabled is set to true and PaymentRequestEnabled is set to true on your WebSettings.
• If Google Pay is not appearing on a test device, verify that the device meets Google’s minimum requirements.

Reference Implementation

To explore our full set of Onramp demo applications across web, backend, and mobile, see the Onramp demo app collateral.

Check out our Apple Pay web demo to see the experience in action. This demo shows how Apple Pay can be embedded directly in your web app for a seamless onramp experience. The source code is available here.

For a full React Native / Expo mobile reference implementation that showcases the Onramp v2 API, CDP Embedded Wallets, and Apple Pay integration, check out the Onramp v2 mobile demo app. Source code is available here

For native iOS implementations, see our iOS WKWebView demo which shows how to embed the Apple Pay flow in a native app using WKWebView and handle payment events through the cbOnramp message handler.
